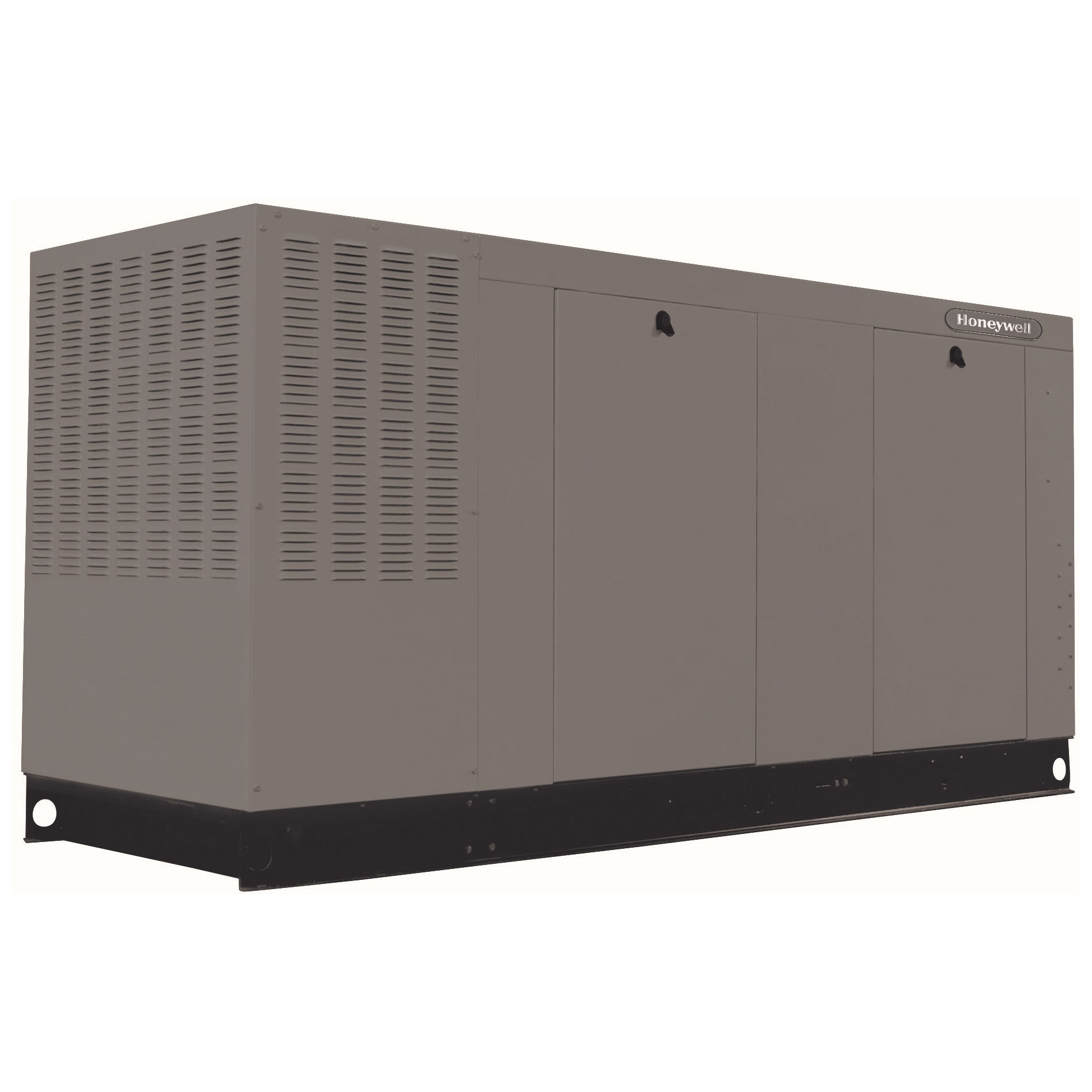

Honeywell 150kW Liquid Cooled Commercial Generator - HG15090C (SCAQMD Compliant)

  • Honeywell 150kW Liquid Cooled Commercial Generator - HG15090C (SCAQMD Compliant)
3600rpm & Aluminum Enclosure
Availability: Coming Soon!
In-Stock Notification Sign Up

To be notified when this item is back In Stock, please enter your Email Address below:

Regular: $47,839.00
Price: $39,869.00
You Save: $7,970.00 (17% Off)
Be The First To Write A Review Review
  • Precision Power Electrical Technology™
  • Two-Line Multilingual Digital LCD Controller (English, Spanish, French, Portuguese)
  • Isochronous Electrical Governor
  • UV/Ozone Resistant Hose
  • System and Status with Maintenance Interval LED Indicators
  • Closed Coolant Recovery System
  • Voltage Regulation Designed for Sensitive Electronics
  • Electronic Engine Control Module
  • Smart Battery Charge
  • Sound Attenuated Aluminum Enclosure
  • UL 2200 Listed
  • Natural Gas (NG) or Liquid Propane (LP) Gas Operation
  • Field Convertible Fuel Type with No Mechanical Adjustment Required
  • 5 Year Premium Limited Warranty

Innovative Engine Design and Rigorous Testing

Total commitment to component testing, reliability testing, destruction and life testing, plus testing to applicable CSA, NEMA, EGSA and other standards allow users to choose Honeywell Generators with the confidence that these systems will provide superior performance.

Precision Power™ Electrical Technology

Superior harmonics and sine wave form produce less than 5% Total Harmonic Distortion for utility quality power. This allows confident operation of sensitive electronic and microchip based appliances such as variable speed HVAC.

Solid-State Frequency, Compensated Voltage Regulation

This state-of-the-art, power maximizing regulation system is the standard on all Honeywell models. It provides optimized FAST RESPONSE to charging load conditions and MAXIMUM MOTOR STARTING CAPABILITY by electronically torque- matching the surge loads to the engine. Provides precise digital voltage regulation for sensitive electronics.

Single Source Service Response

Our extensive dealer network provides parts and services know-how for the entire unit, from the engine to the smallest electrical component.

Honeywell Transfer Switches

The Honeywell Generator Line is offered with its own transfer switches and controls for total system compatibility.

Mobile Link Wi-Fi Connectivity

Honeywell Standby Generators are Wi-Fi enabled. Now users can remotely connect and monitor generator status on a smartphone, tablet or PC form anywhere in the world using Mobile Link’s free service.

18 in. (457 mm) Offset

Listed and Labeled by the Southwest Research Institute allowing installation as close as 18 in. (457 mm) to a structure. (Must be located away from doors, windows, and fresh air intakes and in accordance with local codes.)

Product Details

Honeywell 150kW Commercial Generator (SCAQMD Compliant)

  • Watts: LP 150,000 / NG 150,000
  • Engine Type: 15-cyl In-line
  • WhisperCheck™: Yes
  • Fuel Type: Natural Gas or Liquid Propane
  • Controller: Sync®
  • Mobile Link™ Standard: Yes
  • Enclosure: Aluminum

Generator Specifications

  • Type: Synchronous
  • Rotor Insulation Class: H
  • Stator Insulation Class: H
  • Telephone Interference Factor: <50
  • Alternator Output Leads 1-Phase: 4 Wire
  • Alternator Output Leads 3-Phase: 6 Wire
  • Bearings: Sealed Ball
  • Coupling: Flexible Disc
  • Excitation System: Direct

Voltage Regulation

  • Type: Electronic
  • Sensing: Single Phase
  • Regulation: Designed for Sensitive Electronics

Electronic System

  • Battery Charge Alternator: 12 Volt to 30 Amp
  • Static Battery Charger: 2.5 amp
  • Recommended Battery: Group 27F, 725CCA
  • System Voltage (Battery Not Included: 12 Volts

Engine Specifications

  • Make: Generac
  • Type: In-Line
  • Cylinders: 4
  • Displacement: 4.5
  • Bore: 4.5 / 114.3
  • Stroke: 4.25
  • Compression Ratio: 8.85
  • Intake Air System: Turbo Charged & After cooled
  • Lifter Type: Hydraulic
Product Specs
MPN:
HG15090C
Honeywell HG15090C Liquid Cooled 150kW Commercial Generator (SCAQMD Compliant) Video
